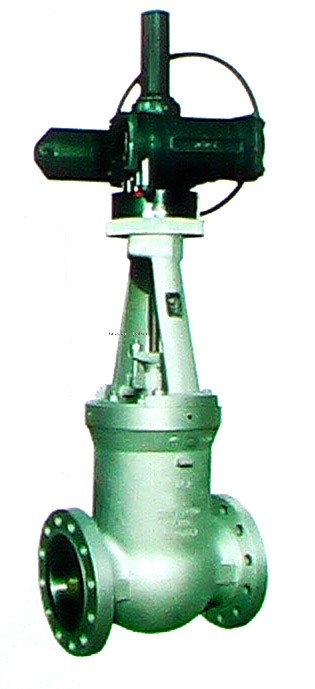

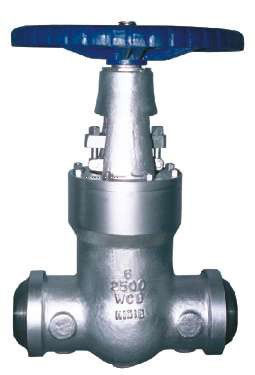

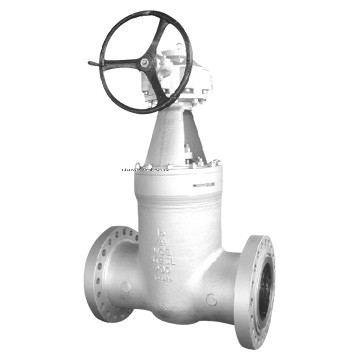

Pressure Seal Gate Valve

Pressure Seal Gate Valve

Our Main Products:

gate valve,ansi gate valve,bs gate valve,DIN gate valve,carbon steel gate valve,cast steel gate valve,WCB gate valve,flexible wedge bolted bonnet gate valve,forged steel extended body gate valve,JIS gate valve,Parallel Slide Bolted Bonnet Gate Valve,api 6d gate valve,api gate valve,bellows seal gate valve,through conduit gate valve,pressure seal gate valve,large gate valve,parallel slide gate valve,solid wedge gate valve,stainless steel gate valve.

Product Origin: China

Brand Name: Sinoval

Price Terms: FOB, CIF

Payment Terms: T/T in advance, L/C

Detailed Product Description

Features:

1) Design standard: BS1414, API 600, ASME B 16.34

2) Description: middle inner pressure automata sealing, rising stem,

    renewable seat, rigid or flexible disc

3) Size: from 2" to 24"

4) Class: from 600lb to 2,500lb

5) Connection ends: flange (ASME/ANSI B16.5A, ASME B16.47) SW

    (ASME B16.25)

6) Operator: handwheel, gear, subulate gear, actuator

7) Body main material: WCB LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M,

    CF3M, CF8C, CK20, CN7M, CD4MCu, CK3MCuN, Cu5MCuC, CN3MN, M35-1,

    MONEL400, MONEL500, CY40, CW6M

8) Sealing material: F6, F310, CoCrA, Cu, MoNCL, alloy 20 al-bronze 316

Packing:

Veneer case for sea transportation
